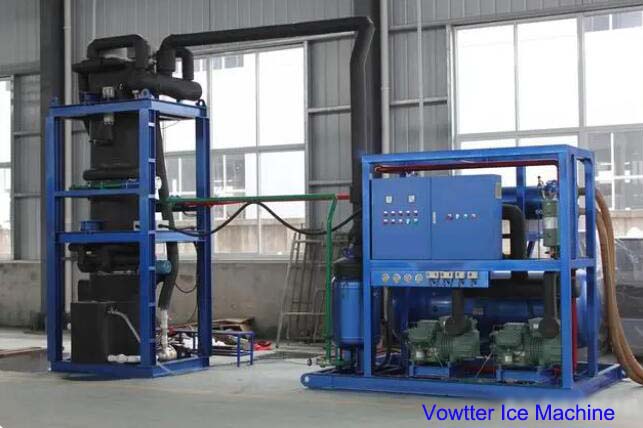

The Principle and Characteristics of Tube Ice Machine

The principle and characteristics of tube ice machine

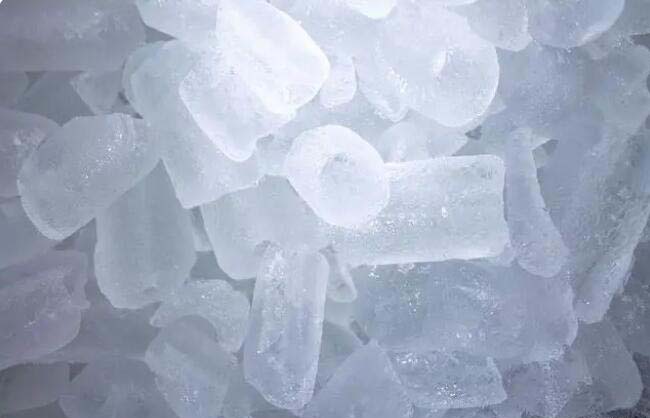

Compared with other ice types, tube ice has the highest density and is the purest among all kinds of ice types.

It is not easy to melt and meets food standards. It can be eaten directly and used for frozen drinks, mixed drinks,

frozen food, making snacks and keeping fresh.

The tube ice machine can adopt air-cooled, water-cooled, or evaporative-cooled condensation methods according to

the ambient temperature of the using site.

Tube ice making principle:

1. Tube ice is formed in a tube evaporator. The water flows along the inner wall of the evaporator to exchange heat with

the refrigerant, and cool down to form ice;

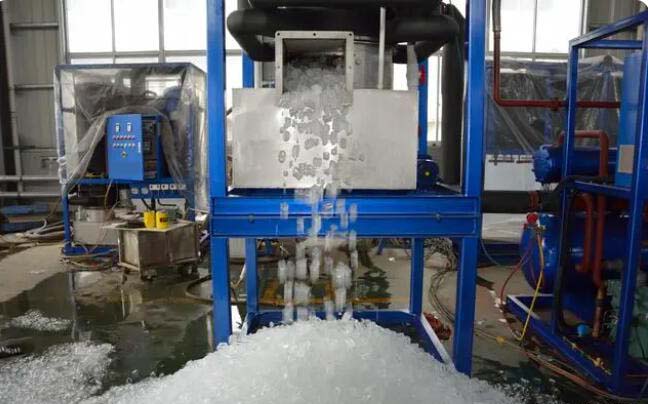

2. When the tube ice falls, the ice cutting mechanism operates to cut the tube ice into the set size. The length of the ice tube

can reach 50mm, and the outer diameter can be divided into four specifications: 22, 29, 32, and 35mm. The inner hole diameter

can be adjusted according to the ice making time, generally between 5 and 10mm;

3. When the thickness of the tube ice reaches the desired value, the water stops flowing automatically. The hot refrigerant gas

will flow into the evaporator and circulate around the tube ice, causing the tube ice to melt and fall off.

Tube ice machine features:

1. All equipment adopts 3D simulation assembly, compact structure, more user-friendly operation and maintenance;

2. The evaporator is made of materials such as SUS304, PE and aluminum alloy, and the hygiene level has reached the

 international HACCP and FDA certification standards;

3. The compression condensing unit is equipped with heat exchangers, temperature controllers, return air superheat,

oil return and other controls to obtain the highest C . O . P value;

4. PLC computer module automatically controls the whole process of ice making.

With its advantages in mass production and operation, tube ice machines have always occupied an important position

in the field of food preservation.

This is the end of the introduction of the tube ice machine, if you have any questions

about the tube ice machine, you can contact us.
