VF1T-A4
Vowtter

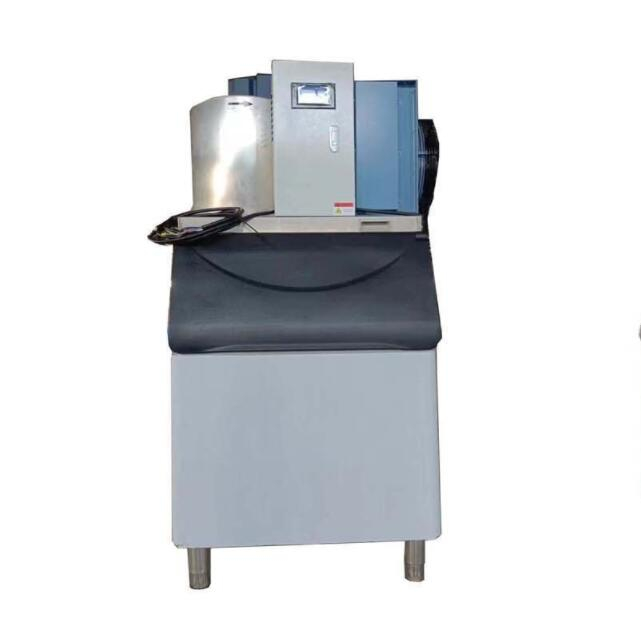

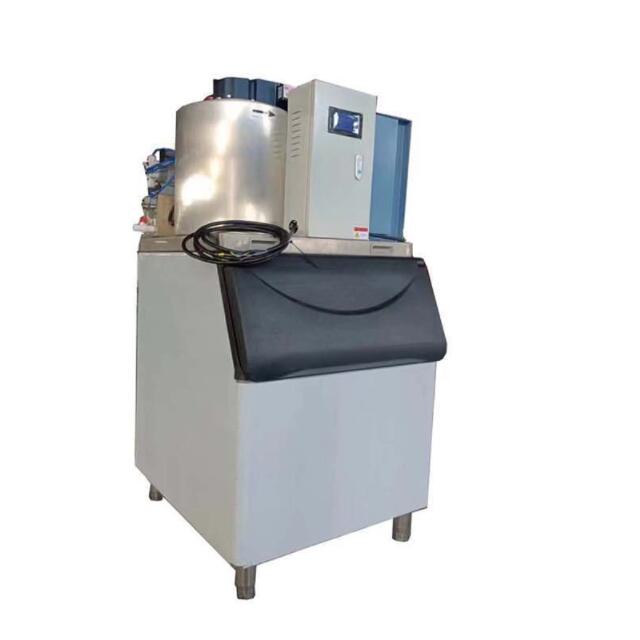

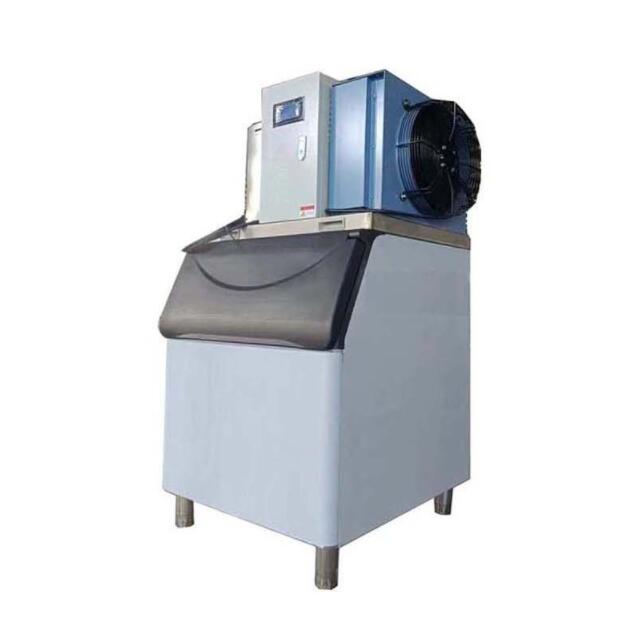

Stainless Steel Flake Ice Machine 1 T/ Day
Evaporating Temperature: -20C°
The technical data based on 25C° ambient temperature and 16C° inlet water temperature.
Model | VF03T-A4 | VF05T-A4 | VF1T-A4 |
Daily Output(Ton/24hrs) | 0.3t | 0.5t | 1t |
Cooling Capacity(kw) | 2 | 3.7 | 5.6 |
Total Power(kw) | 1.95 | 2.5 | 4.1 |
| Condenser Fan Input Power(kw) | 0.09 | 0.18 | 0.18 |
| Compressor Input(kw) | 1.59 | 2.1 | 3.4 |
Reductor Power(kw) | 0.12 | 0.18 | 0.18 |
| Supplied Power | 1P-220v-50hz | 3P-380v-50hz | 3P-380v-50hz |
Water Pressure | 0.1mpa-0.5mpa | 0.1mpa-0.5mpa | 0.1mpa-0.5mpa |
Water Consumption(m3/h) | 0.0084 | 0.0209 | 0.0209 |
Water Pipe Size | 1/2" | 1/2" | 1/2" |
| Unit Net Weigt | 150kgs | 170kgs | 190kgs |
| Dimension(mm) | 770*840*1740 | 770*840*1800 | 770*840*2000 |
9 Major Advantages of Stainless Steel Flake Ice Machine
1. All stainless steel design
Inner walls, outer walls, refrigeration channels, ice blade, brackets, spindle and upper and lower ends
are in high quality 304 stainless steel.
2. Advanced technology
The refrigeration channel adopts a special refining steel molding technology, so that the evaporator does
not deform and does not leak.
3. High efficiency and energy saving
The design of stainless steel O -shaped refrigeration channels is used to reduce the circulation area of the refrigerant
increase the flow rate of refrigerant, and improve the heat exchange efficiency.
4. Beautiful design
High quality stainless steel is used for upper and lower end seats, which uses stamping technology in one go,
no paint, no fall off, no rust, and long service life.
5. Green environmental protection
The inner wall of the evaporator uses high quality 304 stainless steel without chrome -plated treatment.
The whole machine complvs with the reqyirements of FDA food -qrade contact materials.
6. Low failure rate
The stainless steel refrigeration channel is smooth, without welding slag, ensuring that the expansion valve is not
blocked, reducing the failure rate of the refrigeration system.
7. Easy to clean
The full stainless steel box and digital display control are used to make the appearance of the ice machine simple
and easy to clean, and no dead ends with hygiene.
8. Easy maintenance
Adopting a modular design, the ice blade assemble can be taken out of the upper end of the evaporator and is
convenient for maintenance.
9. Strong refrigeration ability
The cooling release capacity of high quality dry -7 "'C flake ice is better than -1'C snow ice.It can prolong the preservation
time of food and reduce the contact between food and melted ice water, so as to ensure the freshness of food.
