| Quantity: | |
|---|---|

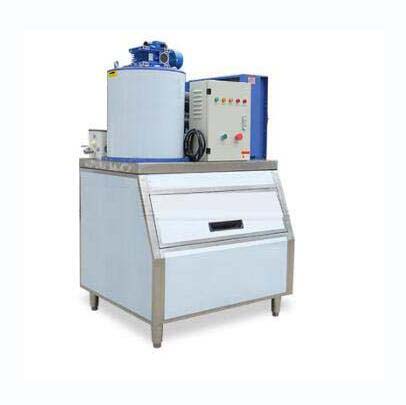

VKCOF-0.5
Vowtter
| No. | Description | Parameter | Remark |
1 | Ambient Temperature | 25°C | |
2 | Supplied Water Temperature | 18°C | |
3 | Evaporating/Condensing Temperature | -20°C/40°C | |
4 | Refrigerant | R404a | |
5 | Supplied Power | 1 P/220 V/50 Hz | |
6 | Cooling Capacity | 2.2 KW | |
7 | 1.9 kW | ||
8 | Ice Thickness | 1.5~2.2 mm | |
9 | Noise（within 2m） | 58 dBA | |
10 | Main body size（L*W*H） | 1030*650*650 mm | |
11 | Storage Tank Size（L*W*H） | 950*800*820 mm | Ice storage capacity 150kg |
12 | Whole Machine Size（L*W*H） | 1030*800*1470 mm | including Storage Tank |
13 | Gross Weight | 170kg | including Storage Tank |
Features of Viking Ice Machine
1. Self-produced and designed sheet ice evaporator. The evaporator is designed and manufactured according to the standard of pressure vessel, which is solid, safe and reliable with zero leakage. Direct low temperature continuous ice, low borneol temperature, high efficiency.
2. The whole machine has passed the international CE and SGS certification, guaranteed.
3. Automatic control, unattended, for the ice machine may appear, voltage phase, overload, water shortage, full ice, low pressure and high pressure fault, will automatically stop and alarm, to ensure the stable operation of ice equipment.
4. The use of first-line brand refrigeration accessories: Germany Bieser, Danmax Danfoss, the United States Valley wheel, Taiwan Hanchung compressor, Italy Lefukang and other well-known compressors, Danfoss solenoid valve, expansion valve, filter dryer, Emerson expansion valve and other refrigeration accessories, sheet ice machine quality is reliable, low failure rate, high ice efficiency.
5. The refrigerator is made of stainless steel and filled with thermal insulation material, which can ensure that the ice does not melt for 24 hours.
6. Manufacturers direct sales, door-to-door installation, ice equipment quality guarantee for 18 months, national coinsurance, lifelong technical support.
7. The company has many years of experience in design and production, and accepts non-standard customization of different ice making equipment. Customers can choose their own ice making equipment for the material, refrigeration accessories and condensation method of ice making equipment.
Applications
Ice machine is widely used in aquatic preservation, food processing, meat processing, fresh supermarket, fishery production, cold chain logistics, medical scientific research, chemical printing and dyeing, concrete cooling and other industries.
1. Aquatic products processing preservation, ice can reduce the processing medium, cleaning water, aquatic products temperature, prevent bacteria growth, keep aquatic products in the process of fresh.
2. The meat products are processed and kept fresh, and the slices of ice that meet the hygiene standards are mixed into the meat and stirred. In order to achieve the purpose of cooling, preservation.
3. Food processing to keep fresh, such as bread production in the stirring or secondary cream, with ice quickly cooling to prevent fermentation.
4. Fresh supermarket, used for aquatic products, display, packaging and other fresh-keeping function.
5. Cold chain logistics, ocean fishing, vegetable transportation and other products that need cooling and preservation are more and more widely used in long-distance transportation.
6. Chemical printing and dyeing, medicine, science laboratory and other industries are also widely used.
7. Concrete mixing, the use of borneol to control the pouring and transport temperature of concrete in the hot season when the concrete is poured in a large range.
| No. | Description | Parameter | Remark |
1 | Ambient Temperature | 25°C | |
2 | Supplied Water Temperature | 18°C | |
3 | Evaporating/Condensing Temperature | -20°C/40°C | |
4 | Refrigerant | R404a | |
5 | Supplied Power | 1 P/220 V/50 Hz | |
6 | Cooling Capacity | 2.2 KW | |
7 | 1.9 kW | ||
8 | Ice Thickness | 1.5~2.2 mm | |
9 | Noise（within 2m） | 58 dBA | |
10 | Main body size（L*W*H） | 1030*650*650 mm | |
11 | Storage Tank Size（L*W*H） | 950*800*820 mm | Ice storage capacity 150kg |
12 | Whole Machine Size（L*W*H） | 1030*800*1470 mm | including Storage Tank |
13 | Gross Weight | 170kg | including Storage Tank |
Features of Viking Ice Machine
1. Self-produced and designed sheet ice evaporator. The evaporator is designed and manufactured according to the standard of pressure vessel, which is solid, safe and reliable with zero leakage. Direct low temperature continuous ice, low borneol temperature, high efficiency.
2. The whole machine has passed the international CE and SGS certification, guaranteed.
3. Automatic control, unattended, for the ice machine may appear, voltage phase, overload, water shortage, full ice, low pressure and high pressure fault, will automatically stop and alarm, to ensure the stable operation of ice equipment.
4. The use of first-line brand refrigeration accessories: Germany Bieser, Danmax Danfoss, the United States Valley wheel, Taiwan Hanchung compressor, Italy Lefukang and other well-known compressors, Danfoss solenoid valve, expansion valve, filter dryer, Emerson expansion valve and other refrigeration accessories, sheet ice machine quality is reliable, low failure rate, high ice efficiency.
5. The refrigerator is made of stainless steel and filled with thermal insulation material, which can ensure that the ice does not melt for 24 hours.
6. Manufacturers direct sales, door-to-door installation, ice equipment quality guarantee for 18 months, national coinsurance, lifelong technical support.
7. The company has many years of experience in design and production, and accepts non-standard customization of different ice making equipment. Customers can choose their own ice making equipment for the material, refrigeration accessories and condensation method of ice making equipment.
Applications
Ice machine is widely used in aquatic preservation, food processing, meat processing, fresh supermarket, fishery production, cold chain logistics, medical scientific research, chemical printing and dyeing, concrete cooling and other industries.
1. Aquatic products processing preservation, ice can reduce the processing medium, cleaning water, aquatic products temperature, prevent bacteria growth, keep aquatic products in the process of fresh.
2. The meat products are processed and kept fresh, and the slices of ice that meet the hygiene standards are mixed into the meat and stirred. In order to achieve the purpose of cooling, preservation.
3. Food processing to keep fresh, such as bread production in the stirring or secondary cream, with ice quickly cooling to prevent fermentation.
4. Fresh supermarket, used for aquatic products, display, packaging and other fresh-keeping function.
5. Cold chain logistics, ocean fishing, vegetable transportation and other products that need cooling and preservation are more and more widely used in long-distance transportation.
6. Chemical printing and dyeing, medicine, science laboratory and other industries are also widely used.
7. Concrete mixing, the use of borneol to control the pouring and transport temperature of concrete in the hot season when the concrete is poured in a large range.
