VKF5T-W4
Vowtter

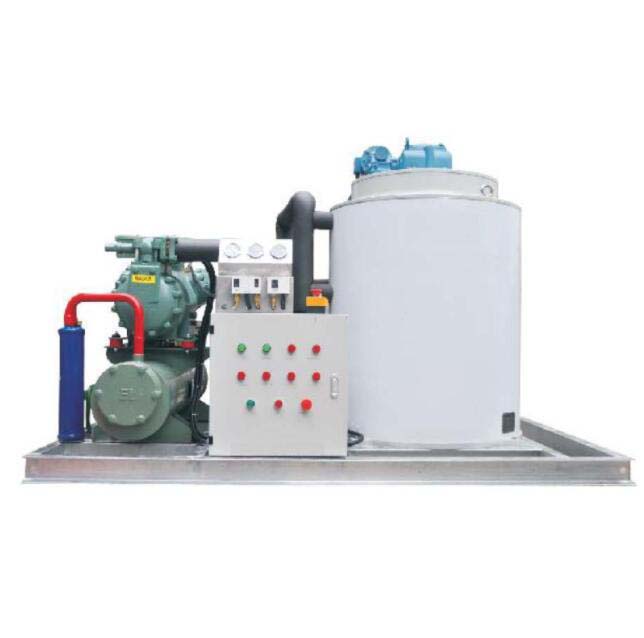

Industrial Flake Ice Machine VKF5T-W4
Daily Output (Ton/24H):5T
Cooling Capacity(kw):32.5
General Power(kw):18.7
Compressor Input(kw):15.9
Reductor Power(kw):0.37
Cooling Mode:Water Cooling
Flow Rate of Cooling Tower: 20m3/h
Water Inlet/Outlet Pipe:3/4"; 1/2"
Weight(kg):980kgs
Dimension(mm): 2030*1650*1450
Model | VKF5T-W4 | VKF8T-W4 | VKF10T-W4 | VKF12T-W4 |
Daily Output(T/24H) | 5t/24h | 8t/24 | 10t/24h | 12t/h |
Cooling Capacity(KW) | 32.2 | 50.8 | 57.5 | 71.4 |
General Power(KW) | 18.7 | 28.05 | 39.95 | 46.6 |
Compressor Input(kw) | 15.9 | 23.6 | 33.7 | 39.6 |
Reductor Power(KW) | 0.37 | 0.75 | 0.75 | 0.75 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Cooling Tower (m3/h) | 20 | 30 | 40 | 45 |
Water Inlet/Discharge Pipe | 3/4”; 1/2” | 3/4”; 1/2” | 3/4”; 1/2” | 2*3/4”; 1/2” |
Weight (kg) | 980kgs | 1670kgs | 2020kgs | 2260kgs |
Dimension(mm) | 2030*1650*1450 | 2530*1650*1450 | 2530*1890*1650 | 2530*1900*1900 |
This large series of VIKING flake ice machine are widely used in the field such as aquatic food & meat product processing, leather processing, fowl butchering, dye chemical industry, mines, concrete construction project, , Etc.
Industrial Flake Ice Machine VKF5T-W4
Daily Output (Ton/24H):5T
Cooling Capacity(kw):32.5
General Power(kw):18.7
Compressor Input(kw):15.9
Reductor Power(kw):0.37
Cooling Mode:Water Cooling
Flow Rate of Cooling Tower: 20m3/h
Water Inlet/Outlet Pipe:3/4"; 1/2"
Weight(kg):980kgs
Dimension(mm): 2030*1650*1450
Model | VKF5T-W4 | VKF8T-W4 | VKF10T-W4 | VKF12T-W4 |
Daily Output(T/24H) | 5t/24h | 8t/24 | 10t/24h | 12t/h |
Cooling Capacity(KW) | 32.2 | 50.8 | 57.5 | 71.4 |
General Power(KW) | 18.7 | 28.05 | 39.95 | 46.6 |
Compressor Input(kw) | 15.9 | 23.6 | 33.7 | 39.6 |
Reductor Power(KW) | 0.37 | 0.75 | 0.75 | 0.75 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Cooling Tower (m3/h) | 20 | 30 | 40 | 45 |
Water Inlet/Discharge Pipe | 3/4”; 1/2” | 3/4”; 1/2” | 3/4”; 1/2” | 2*3/4”; 1/2” |
Weight (kg) | 980kgs | 1670kgs | 2020kgs | 2260kgs |
Dimension(mm) | 2030*1650*1450 | 2530*1650*1450 | 2530*1890*1650 | 2530*1900*1900 |
This large series of VIKING flake ice machine are widely used in the field such as aquatic food & meat product processing, leather processing, fowl butchering, dye chemical industry, mines, concrete construction project, , Etc.
