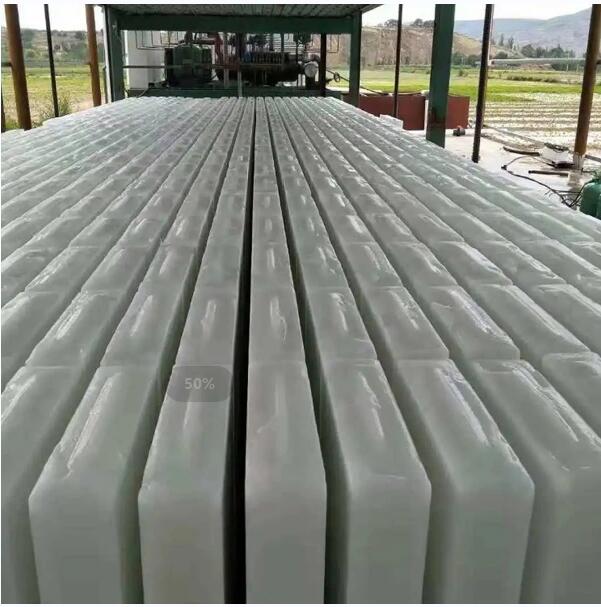

Block ice :
Block ice is the ice made in the ice mold. It is hard, not easy to melt, has a long storage time and is convenient to transport. It is widely used in the field of food, fresh-keeping and cooling of aquatic products, ice sculpture and other special fields. It is the first ice used by humans.

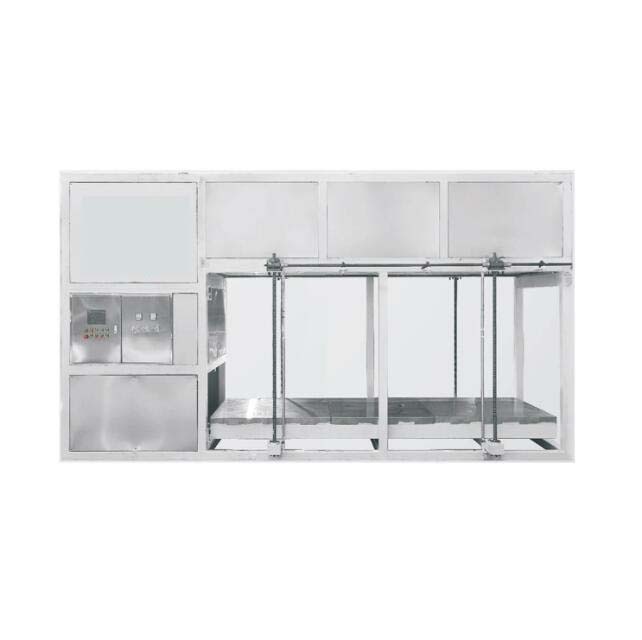

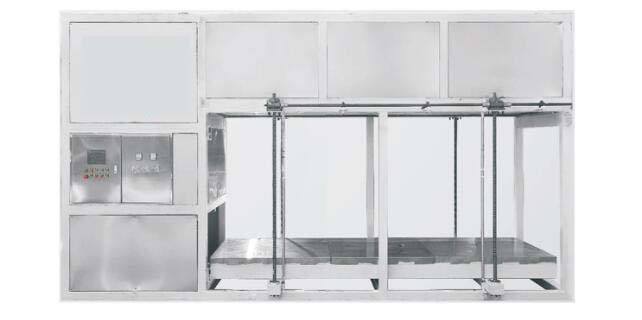

Viking Direct Cooling Block Ice Machine:
1. Applying Modular design,Small footprint and simple on-site installation.
2. PLC control, automatic water replenishment, deicing and Ice delivery(optional), simple operation and low failure rate.
3. It can provide designed ice storage, ice delivery and ice breaking systems to save manpower and improve efficiency.
4. Not use coolant, no brine, no strong corrosion.
Main components:
▲Ice making evaporator module
Ice cans: High quality aluminum alloy ice cans, galvanized or stainless steel support frame, made of clean and sanitary ice blocks, which can be directly eaten.
Water input system:The specially designed water adding device is simple to operate, accurate to control the amount of water added, and avoids water waste.
Defrosting system: Hot fluorine defrosting system, soft hot gas supply, efficient deicing, and no damage to the ice surface.
Ice dropping system:Manual / automatic hydraulic deicing lifting platform, simple and stable operation, safe deicing and non fragile.
▲Compressor unit module:
• compressor - Bitzer/Hanbell/Frascold/XM/Mycom and etc.
• Vessels - liquid receiver, oil separator (when needed), suction accumulator;
• Piping - suction and discharge;
• Valves - Danfoss/ AMG
▲Condensing module.
• Water cooling tower or
• Evaporative condenser or
• Air-cooled condenser
Humanized design, multiple ice sizes available:
Ice Block Dimension:
| Weight (kg/block) | Dimension (mm) | Pro. Time per batch (hr) | Batches per day (times) |
| 5 | 120*100*600 | 4.5 | 4 |
| 10 | 230*100*600 | 4.5 | 4 |
| 15 | 330*100*600 | 4.5 | 4 |
| 20 | 300*125*800 | 6.5 | 3 |
| 25 | 350*125*800 | 6.5 | 3 |
| 30 | 280*170*800 | 9.5 | 2 |
| 40 | 350*170*800 | 9.5 | 2 |
| 50 | 450*170*800 | 9.5 | 2 |
| 100 | 550*220*1000 | 14 | 1.5 |
Direct cooling ice machine parameter:
| Model | Capacity (t/24hr) | Ice Block weight (kg) | Refrigeration capacity (kw) | Install Power (kw) | Power consumption (kw) | Dimension (mm) | Operating weight (kg) |
| VKB-50DW | 5 | 50 | 38 | 30 | 23 | 4800x1800x2200 | 3800 |
| VKB-100DW | 10 | 50 | 76 | 50 | 38 | 7000x2200x2550 | 4950 |
| VKB-150DW | 15 | 50 | 114 | 75 | 55 | 10000x2200x2550 | 7250 |
| VKB-200DW | 20 | 50 | 152 | 100 | 73 | 11800x2200x2550 | 8670 |
| VKB-250DW | 25 | 50 | 190 | 120 | 85 | 11800x2912x2550 | 11500 |
| VKB-300DW | 30 | 50 | 228 | 150 | 103 | 11800x3012x2550 | 12500 |
* Water cooled condenser with cooling tower. Have air cooled condenser /Evaporative condenser for optional.
* Refrigerant:R22/R404A/R507. Power: 380V/3P/50HZ.
* Condition: Ambient temperature:35ºC. Wet-B: 25ºC. Water inlet temperature: 20ºC
* Ice Block weight has 25kg/50kg optional,The Dimension of the equipment will vary depending on the size of the ice
Some more features:
• Large evaporation area coil evaporator increases heat transfer efficiency, ensures long service time and corrosion resistance.
• Well insulated brine tank with high resistant epoxide coating.
• Heavy-duty overhead crane with 2 speeds for moving, lifting and tipping the ice cans.
• Ice thawing tank utilizes the exhaust heat from compressor, more energy saving.
• Modular design simplified equipment transportation and on-site installation process.
• Rivet and reinforced ice cans construction to extend its service life.
• Unique propeller blade processing technology to improve the efficiency of the agitator, increase the flow of salt water, accelerate ice making speed.
• Options of stainless-steel ice cans and galvanized steel ice cans.
• Touch screen, reserve function, 3G network remote fault alarm, 4G network remote video monitoring are available on request.
Application Field:
