VT2T-A4
Vowtter

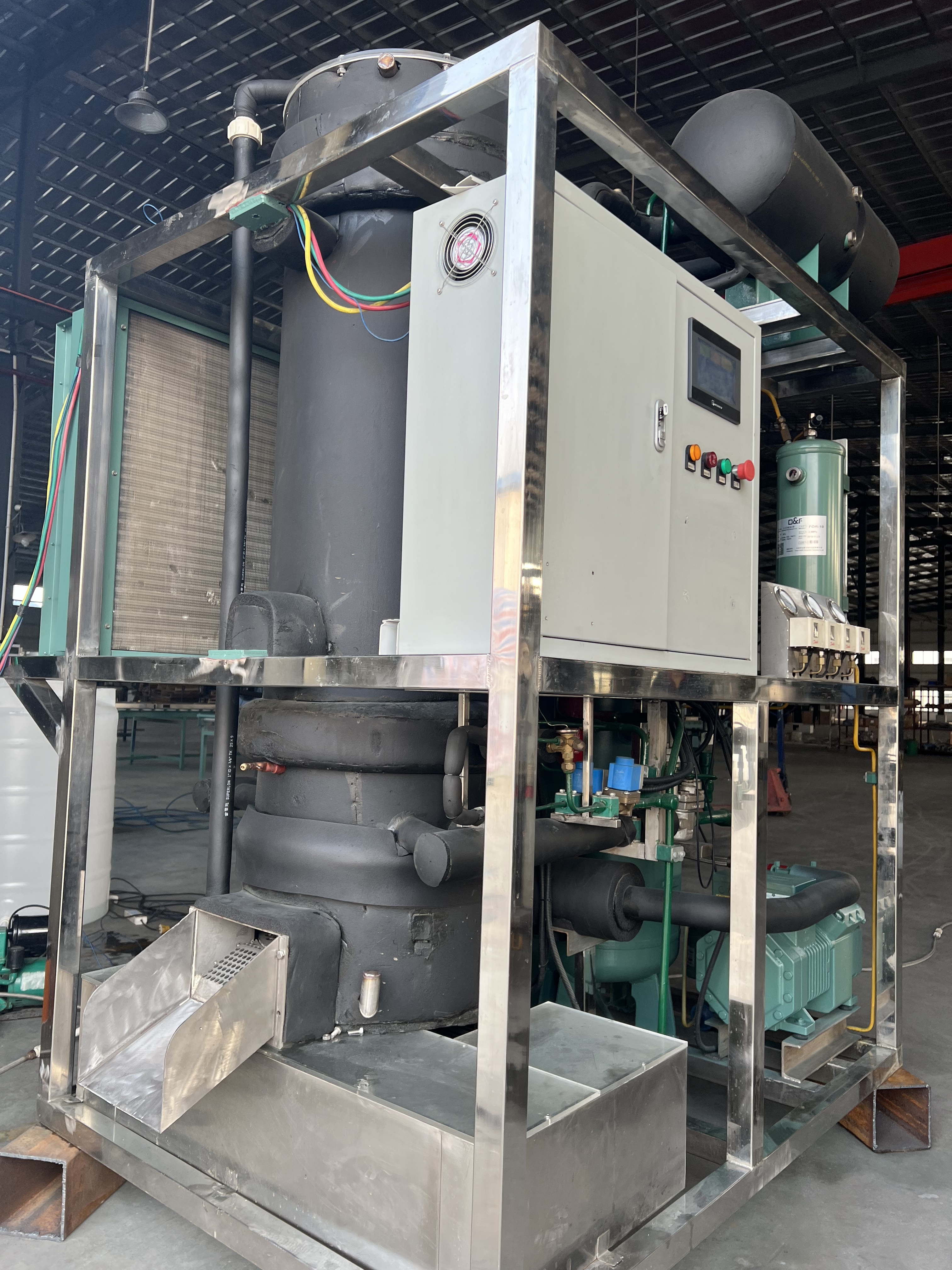

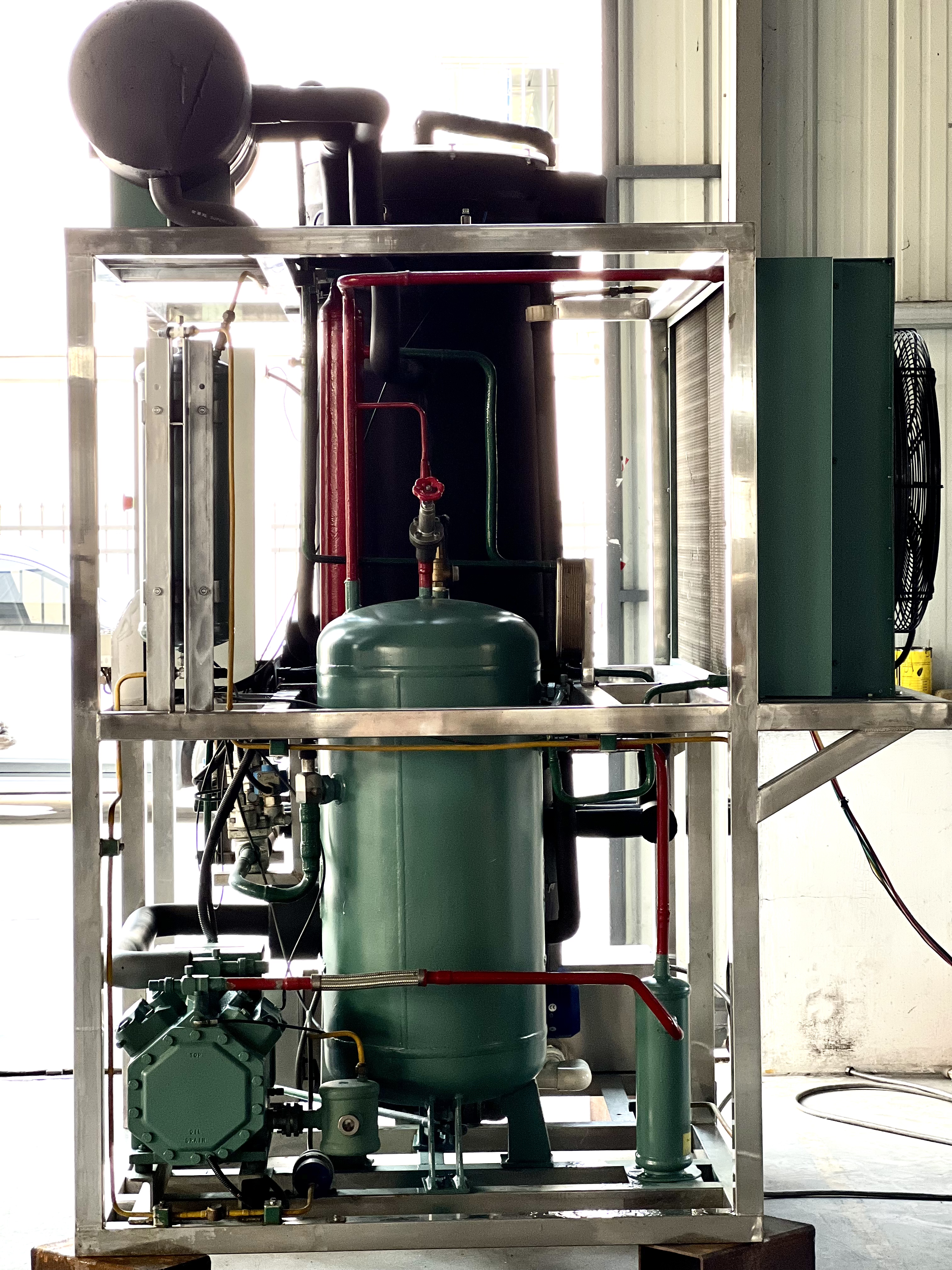

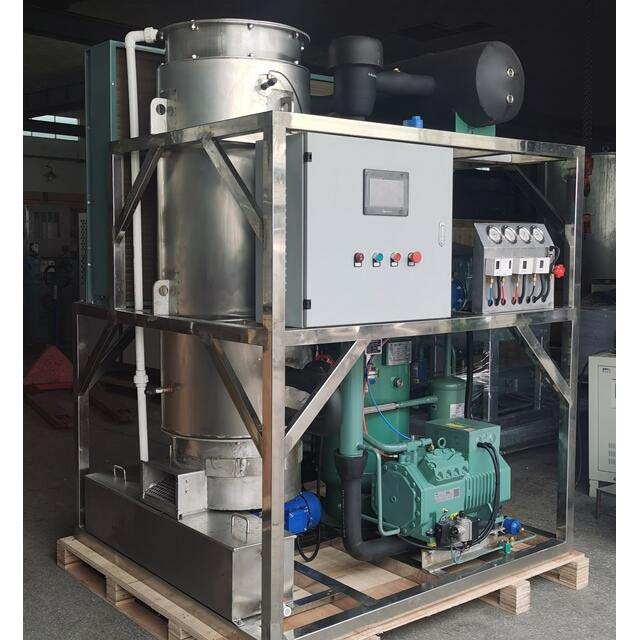

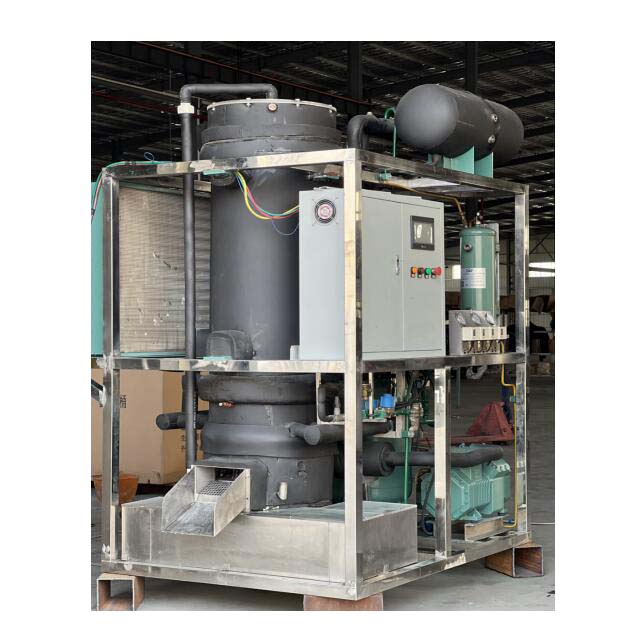

Tube ice , featuring crystal clear body and lasting freeze , is welcomed by high-end hotels , leisure and entainment venues for making mixed wine and ice drinking. The tube machines ,especially production output from 1t to 80t/days ,are prefered by ice making industry in South East Asian and South America.
Evaporator: Using high -quality food grade 304 stainless steel, it fully meets the food management system
HACCP certification.
Intelligent control: Patented man-machine interactive automatic control system, dynamic display of machine running status; The ice thickness can be controlled by adjusting the ice making time on the touch screen.
Model | VT1T-A4 | VT2T-A4 | VT3T-A4 | VT5T-A4 |
Ice Output | 1t/24h | 2t/24h | 3t/24h | 5t/24h |
Cooling Capacity(kw) | 11.9 | 18.8 | 33.5 | 49.6 |
Input Power(kw) | 6.21 | 8.39 | 14.5 | 22.73 |
Machine Weight(kg) | 950 | 1150 | 1280 | 1600 |
Machine Size (mm) | 1440*900*1950 | 1650*1300*2150 | 1650*1300*2150 | 1750*1400*2200 |
Dimension of Split Condenser(outdoor) | 1100*450*870 mm | 1100*500*870mm | 2000*650*1145mm | 2000*700*1145mm |
Model | VT2T-W2 | VT3T-W2 | VT5T-W2 | VT10T-W2 | VT20T-W2 | VT30T-W2 |
Ice Output | 2t/24h | 3t/24h | 5t/24h | 10t/24h | 20t/24h | 30t/24h |
Cooling Capacity | 19.3kw | 34.4kw | 50.7kw | 80.9kw | 161.8kw | 242.7kw |
Input Power(kw) | 8.55 | 14.69 | 23.8 | 42.85 | 82 | 115.7 |
Machine Weight | 1150kg | 1280kg | 1600kg | 2750kg | 5200kg | 6400kg |
Machine Size (mm) | 1650*1300*2150 | 1650*1300*2150 | 1750*1400*2200 | 2300*1600*3100 | 2400*2100*2250 | 2900*2100*2250 |
Cooling Tower Size (mm) | Φ920*1830 | Φ1165*1645 | Φ1385*2150 | Φ1880*2120 | Φ2900*2690 | Φ2900*2875 |
Weight of Cooling Tower | 190kg | 200kg | 500kg | 975kg | 1600kg | 1680kg |
