VEF-25T
Vowtter

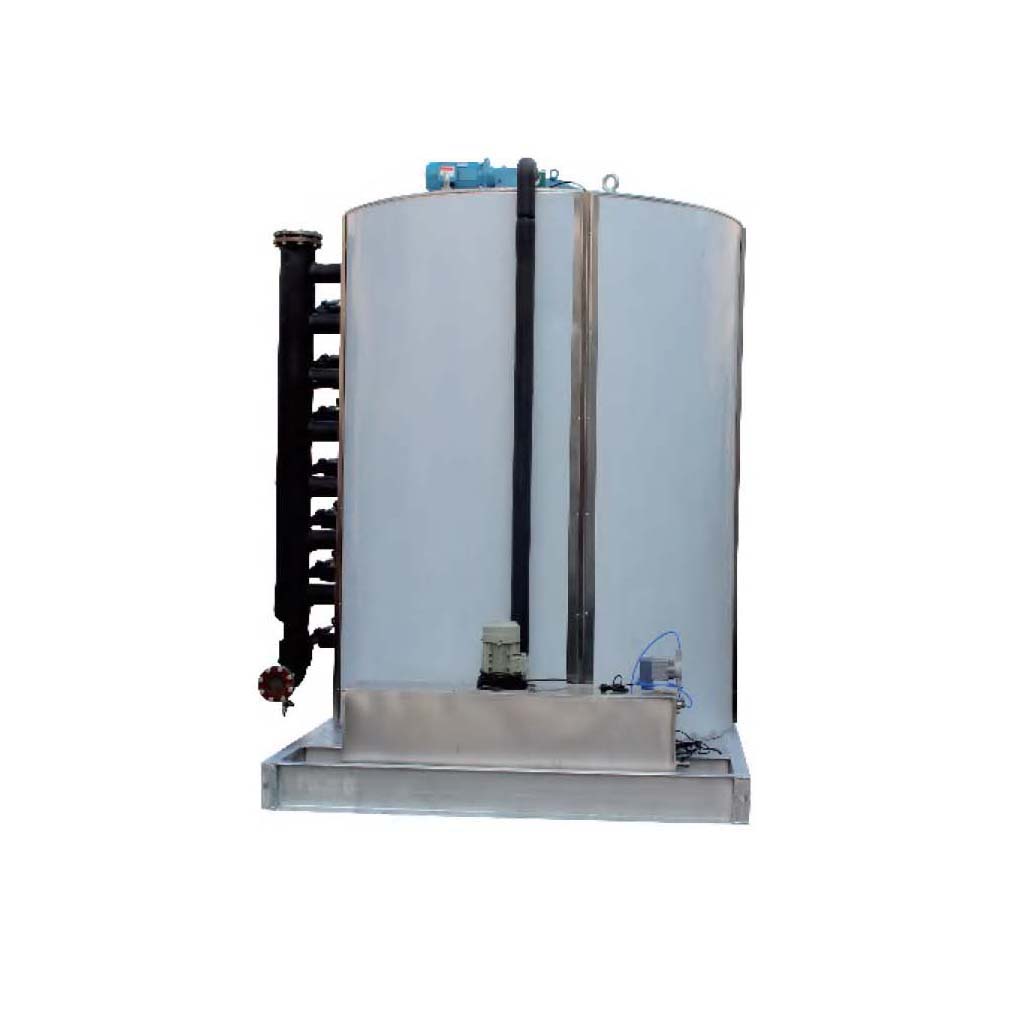

Industrial Flake Ice Machine Stainless Steel Evaporator 25T/Day
Daily Output :25t/24H
Cooling Capacity:150kw
Voltage: 380v/50Hz/3P
Reductor Power : 0.75kw
Water Inlet / Discharge Pipe:1/2" or 3/4"
Dimension: 2130*1850*2550mm
Weight: 2500kgs

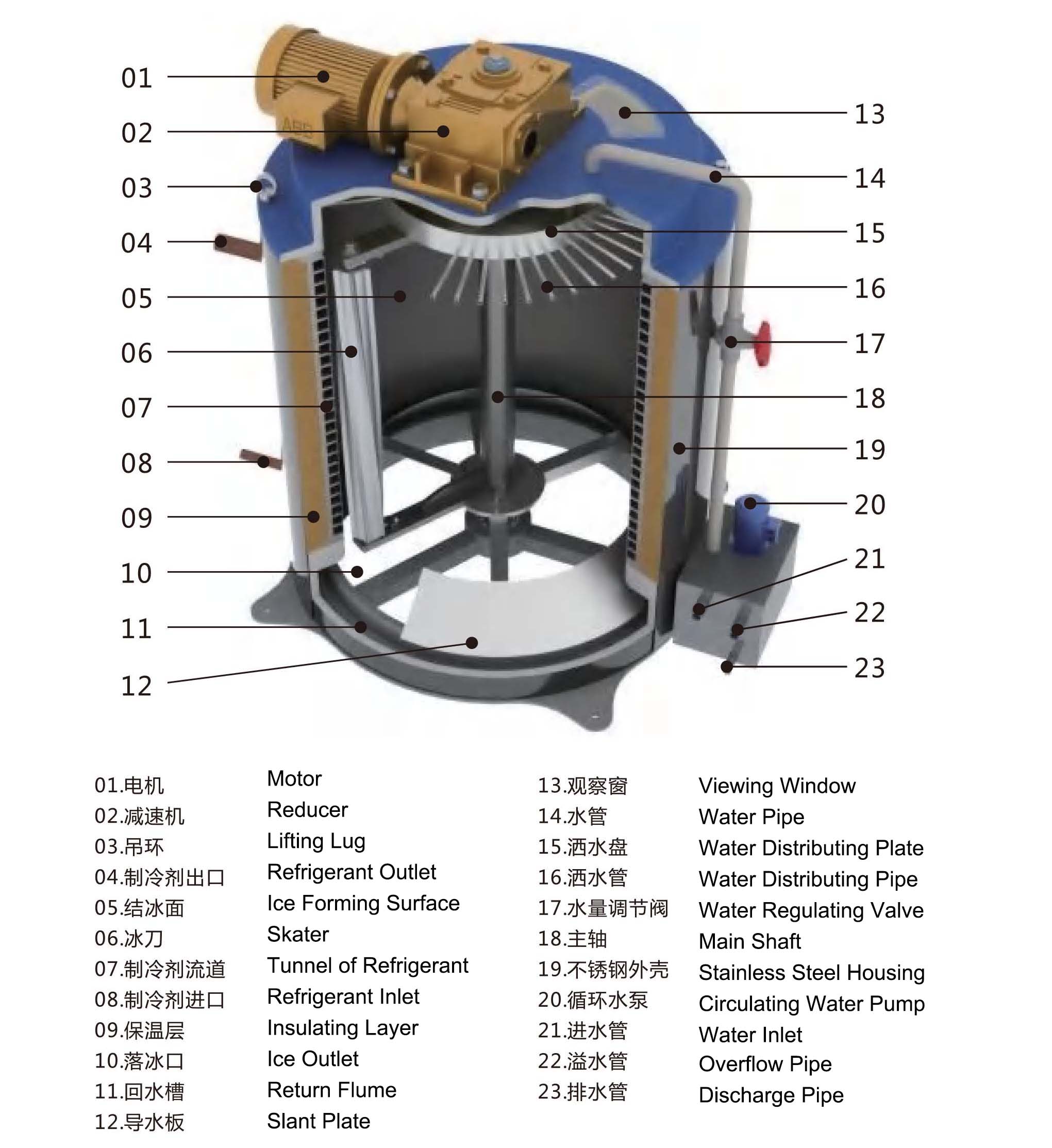

When making ice, the water is pumped into the water distributing plate ,and then it will be evenly sprinkled on the inner wall of the evaporator .The refrigerant evaporates and absorbs heat in the flow passage, and the temperature of the inner wall of the evaporator drops, and the water gradually freezes into ice in the downward flow process. At the same time, the reducer drives the ice scraper to rotate counterclockwise to scrape the ice frozen on the inner wall of the evaporator. Excess water flows back into the tank, where it re-circulates, So that flake ice can be made continuously
The evaporator is the key component of flake ice machine and it plays big role in making ice. Our customers often buy the evaporator separately and assemble the complete set of ice making equipment with their own refrigeration units. In order to match different evaporators, you can choose different refrigerant refrigeration units. Before you buy evaporator from us, please tell us what kind of refrigerant you will choose.
Technical Data:
Ambient Temperature :25°C
Characteristics:
1.The ice flaker evaporator is made of high heat conduction alloy materials , which can achieve the heat transfer efficiency of aluminum.
2.Weldless ice skaters are not easy to wear because of their high strength and toughness, and the service life is as long as 8 years.
3.This mature design is tested by numerous times .The equipment with high quality accessories work stably . The evaporator also features small size for installation.
4.The ice is clean, even and crystal clear.
5.The ice is made within 1-2 minutes after the machine is turned on, and the ice falls fast.
